Difference between Tibco EMS and Tibco RV? Answer

Both of them are products from Tibco and are used extensively across global investment banks for the front end to back end communication or server to server communication. though they have differences in the manner they have designed and the specification they are based upon. Tibco RV stands for Tibco Rendezvous which is based on proprietary Tibco protocol (TRDP/PGM) developed by the company. They have provided API in almost all major programming languages and this is a preferred choice if you need high-speed communication e.g. publishing market data updates etc.

Most of the stock trading applications either equities or futures/options they heavily rely on market data which they receive from various market data publishers e.g. Reuters, Bloomberg, or Wombat but sometimes format of market data is not something every application can directly consume so they have an internal application which receives this stock prices and converts them into a format which every application can understand and here they publish market data in a Tibco multicast topic say MARKETDATA.TSE.UPDATE and all application which needs can subscribe to this.


While Tibco EMS stands for Tibco Enterprise Messaging service and is based upon JMS specification which is provided by Sun MicroSystem. though other JMS implementations also available e.g. MQ Series

Tibco EMS is the preferred choice for more reliable communication like for sending and receiving Order and Execution data.


Today almost all the stock trading happens electronically and here its most important requirement is not to loose any order or execution received from either client or exchange , so all sell side firm which provides these trading application and infrastructure rely on tibco for such kind of needs. Tibco EMS cater this requirement by providing durable tibco topic which holds the data until every subscriber consumes it and also guarantees data shouldn't lost during network transmission.


Tibco RV do provide guaranteed communication via Tibco Certified messaging and which is used to send/receive  sensitive information e.g. Order , execution or booking related data if you are using Tibco RV infrastructure since in this case you can't afford data loss which is bound to occur in case of Tibco RV.


Important part of Tibco RV infrastructure are

Rendezvous Daemon (RVD): most important part application connects to rvd daemon over TCP protocol which in tern responsible for efficient messaging over the network using TRDP/PGM multicast/broadcast transport with subject based filtering.

Rendezvous Routing Daemon (RVRD): It is used to bridge two regional networks say Tokyo and London or London and New york Implements point-to-point (TCP) routing of messages with subject-based filtering across different multicast networks and also handles the RVD functionality on the local network.





to summarize

I could outline following difference between Tibco RV and Tibco EMS based upon my experience :

1) Tibco RV is proffered choice for high speed messaging e..g publish of market data etc while Tibco EMS which is based upon JMS implementation is mostly used for more reliable messaging e.g. Order and trade and mostly work on acknowledgment .

2) Also topic and queue created on Tibco EMS are static in nature and they get created on Tibco EMS Server while Subject of Tibco RV is dynamic in nature.

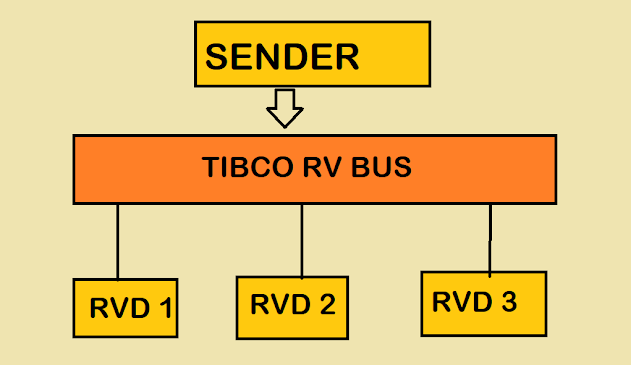

3) Tibco RV works on Bus model every node connected to bus have RVD running so no single point of failure if one node goes down other can still communicate with each other while in case of Tibco EMS work on Hub and Spoke model where  Tibco EMS Server is Single Point of failure because all topics and queues were created on this and publisher and subscriber connects to it , so if it went down all traffic will be stopped , though Tibco EMS Server could have another failover instance which can become primary in case required.

to read more about tibco rv or tibco ems  see my tibco tutorial series


Related post:

6 comments :

Anonymous said...

how to do the load balencing in webservices ?
help me please in this

Anonymous said...

tibco rv vs tibco ems is the one question asked to me. I love tibco rv and I hate tibco EMS , tibco EMS just ok but Tibco Rendezvous just rock. anyway use Tibco EMS when you want guaranteed delivery and use Tibco RV when you want fast delivery as simple as that. Tibco RV vs Tibco EMS is just uncomparable.

Anonymous said...

This Post in not about differences its just about RV. Everything is about RV not much EMS stuff.

Anonymous said...

I agree, there is not much of a comparison between the two. Tib RV does have certified message which guarantees delivery. So I would certainly not choose EMS just for reliability. The biggest difference between the two is RV does not have persistence that exists in EMS queues. In fact there is no way to queue message in RV. Also EMS is written in C (not Java) so it is probably one of the more efficient JMS packages available. Another thing about EMS that many do not know about is that there is a built-in bridge between Tib RV and EMS which allows you to use both together on an as needed basis.

AnonymousEric

Anonymous said...

Few major differences between Tibco RV and Tibco EMS:

1. Tibco RV uses bus architecture while Tibco EMS uses hub based approach.
2. Tibco EMS has broker which is a single point of failure.
3. Tibco EMS is an implementation of JMS.

Anonymous said...

Tibco offers you to choose between TRDP and PGM protocol during installation. Main difference between TRDP and PGM protocol is that one is reliable transport protocol, while other is Reliable multicast transport protocol. Though both of them provides Ordered and duplicate-free delivery of messages, TRDP can do so only on single subnet, while PGM can do so over a group of interconnected subnets.
